Since 1980, STB Machine Works has been doing business in the Houston area specializing in Prototype works and Short Run Production.
At S. T. B Machine Works, we put our years of experience in the Oil & Gas, Subsea and Solar Energy industries to make quality products for our customers. By utilizing our work space that houses a wide range of equipment and qualified staff efficiently, we are better able to meet current industrial demand while providing quality parts and service to our customers.
At S.T.B. Machine works, we pride ourselves in quality and professionalism.We are ISO 9001 certified company.
Houston-based, STB Machine Works was founded in 1980, with the mission to provide a high quality product to valued customers while making a commitment to meeting the customer needs. Company located in a 1.3 Acres and 11,000 square foot modern, environmentally controlled facility where our tested tried and true equipment can be used in a variety of industries including Oil and Gas, Plastics, Heavy Equipment, Aerospace, Government, and Power Generation. STB Machine Works has in house engineer to optimize current production and provide CAD services. STB Machine Works provides, old school dedication to craftsmanship combined with state-of- the-art equipment, means high quality precision machined parts delivered on-time, every time. Company uses the latest CNC technology to machine parts in a wide variety of sizes and materials. STB Machine Works implement the most current equipment and technologies in our effort to tool precision parts the fastest most efficient way possible. Even better, our ultra-precise measuring technology gives us the capability to do 100% inspection of each component manufacture. STB Machine Works philosophy is to invest in a wide variety of equipment so that we can manufacture your product in the most efficient way possible. So whether you need a simple bracket or complex piece used in space STB Machine Works can provide all services. STB Machine Works also equipped modern weld shop and QA lab with CMM for turnkey solution.

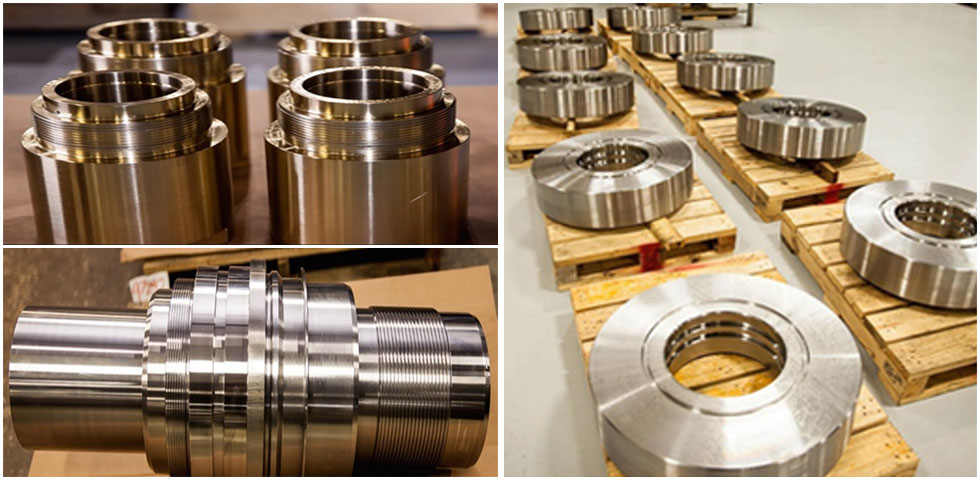

We are a high precision, close-tolerance machine shop offering precision CNC machining services, screw machine services and traditional machining including CNC milling, drilling and CNC turning. In addition to machining services, we provide a comprehensive array of secondary services which include welding, assembly, stocking programs and coordinating outside services such as coating, anodizing, heat treating, plating, sterilizing and annealing. We provide CMM report with all machined parts to ensure the quality. STB Machine Works can fabricate welded piping manifolds with flanges, elbows, tees and gaskets. Weld end connections with final field welding can also be supplied. Company can perform weld testing and pressure testing with complete reports. STB Machine Works can be a one stop shop for your complete piping need for stainless and alloy steel material.

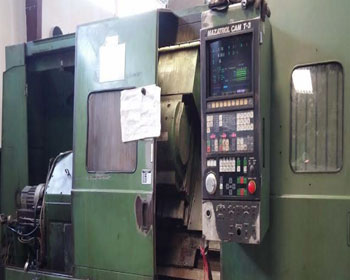

Mazak CNC Lathe has a capacity of 1" to 22" indiameter and 60" long. Also capacity for 7" X 100" long bar.

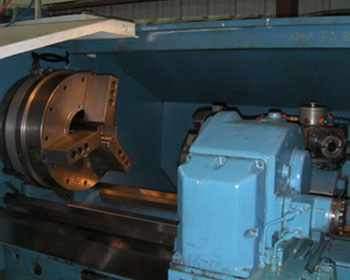

The Mazak M-5N Turning Center delivers heavy duty machining capability and features a flat-bed construction for easy work access and chip flow. The dual turret configuration streamlines the processing of large, long parts. The M-5N also provides spindle bore sizes up to 7.1" in diameter and with front and rear chucks; large diameter pipe-type work is easily handled.
➢ Flat-bed design
➢ Optional 7.1"-diameter spindle bore
➢ Rigid high-torque, geared headstock for heavy-duty cutting
➢ Octagonal disc (front) and hexagonal (rear) boring turret
|Specification||Bed Length - 80 in||Bed Length - 120 in|
|Capacity||Maximum Swing||24.02 in / 610 mm||24.02 in / 610 mm|
|Maximum Machining Diameter||22.830 in / 580 mm||22.830 in / 580 mm|
|Maximum Machining Length||81.890 in / 2080 mm||122.050 in / 3100 mm|
|Main Spindle||Maximum Speed||2200 rpm||2200 rpm|
|Motor Output (30 minute rating)||30.0 hp / 22 kw||30.0 hp / 22 kw|
|Turret (Upper)||Number of Tools||14||14|
|Feed Axes||Travel (X Axis)||22.05 in / 560 mm||22.05 in / 560 mm|
|Travel (Z Axis)||80.91 in / 2055 mm||121.06 in / 3075 mm|
|Travel (W Axis)||5.12 in / 130 mm||5.12 in / 130 mm|

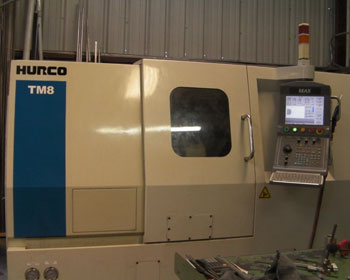

CNC Lathe HURCO TM8 has a capacity of 0.01" to 10"in diameter and 25"in long.
➢ SWING OVER BED 21.6"
➢ SWING OVER CROSS SLIDE 12.6"
➢ MAXIMUM TURNING DIAMETER 12"
➢ MAXIMUM TURNING LENGTH 18.8"
➢ X- AXIS TRAVEL 8"
➢ Z- AXIS TRAVEL 20"
➢ DISTANCE BETWEEN CENTERS 23"
➢ SPINDLE NOSE A2-6
➢ SPINDLE SPEED 4,800 RPM
➢ SPINDLE MOTOR 15 HP
➢ SPINDLE CHUCK 8" 3-JAW HYDRAULIC
➢ SPINDLE BORE 2.44"
➢ BAR CAPACITY 2.04"
➢ X-AXIS RAPID FEED RATE 750 IPM
➢ Z-AXIS RAPID FEED RATE 945 IPM
➢ TURRET STATIONS 10
➢ MACHINE DIMENSIONS 116" X 91" X 80"
➢ MACHINE WEIGHT 8,160 LBS
➢ HURCO ULTIMAX CONTROL
➢ CHIP CONVEYOR
➢ TOOL PRE-SETTER
|Max turning length||477.5 mm|
|Max. turning diameter||24.02 in / 610 mm|
|Max. diameter above the bed||548.6 mm|
|Diameter above traversing slide||320 mm|
|Length between centers||584.2 mm|
|Type of CNC||HURCO ULTIMAX|
|Spindle bore||61 mm|
|Number of turrets||1|
|Number of tools on turret||10|
|Turning speed||4800 rpm|
|Spindle motor power||11.2 kW|
|Length x width x height||2946.4 mm x 2311.4 mm x 2032 mm|

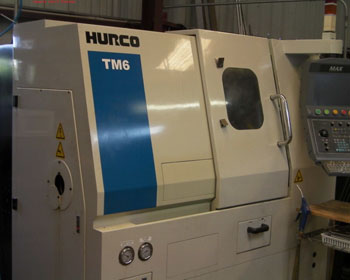

CNC Lathe HURCO TM6 has a capacity of 0.01" to 5"in diameter and 10"in long.
|Max. Cutting diameter||254mm|
|Spindle Motor Power||13kW|
|Distance Between Centres||403mm|
|Swing over the Cross-slide||230mm|
|Turret Positions||12 Station|
|Maximum Cutting Length||377mm|
|Description||Tool setter, Coolant, Tailstock, Low Volt Light, 3 Jaw Chuck, Parts Catcher, Manuals, Tooling|

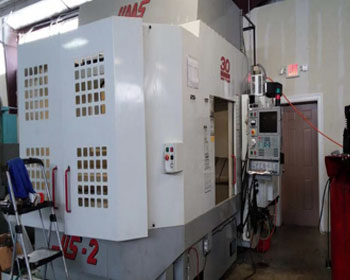

CNC Milling VM2 has a capacity of 18"in wide, 46"in length and 16"in height. 30 tool ATC (Automatic Tool Change) Capability. Table size 46" x 18"
|TABLE SIZE||46" x 20"|
|MAXIMUM TABLE WEIGHT||1,200 LBS|
|SPINDLE MOTOR||20 HP|
|SPINDLE SPEEDS||8,000 RPM|
|SPINDLE TAPER||CAT 40|
|AUTOMATIC TOOL CHANGER ( DUAL ARM )||16 ATC|
|MACHINE DIMENSIONS||71" x 97" x 102"|
|MACHINE WEIGHT||9,000 LBS|
➢ ULTIMAX CNC CONTROL
➢ INDUSTRY STANDARD NC
➢ RIGID TAPPING
➢ DXF TRANSFER
➢ RAMP/HELICAL ENTRY
➢ FLOPPY DRIVE
➢ EXTENDED HDD
➢ EXTENDED MEMORY
➢ CHIP AUGER
➢ 16 STATION SIDE MOUNT TOOL CHANGER
|Table size||50" x 23.2"|
|Spindle motor||20/15 hp|
|Spindle speeds||20 - 8,000 RPM|
|Spindle taper||CAT 40|
|Spindle nose to Table top||3.9" - 28.9"|
|Spindle torque||210.2 ft lbs|
|Number of tools||24|
|Tool change time||8 seconds|
|Table load capacity||2000 lbs.|
|Rapid Traverse Rates||787 IPM|
|Max tool diameter||3.54" / 6.3"|
|Max tool length||11.8"|
